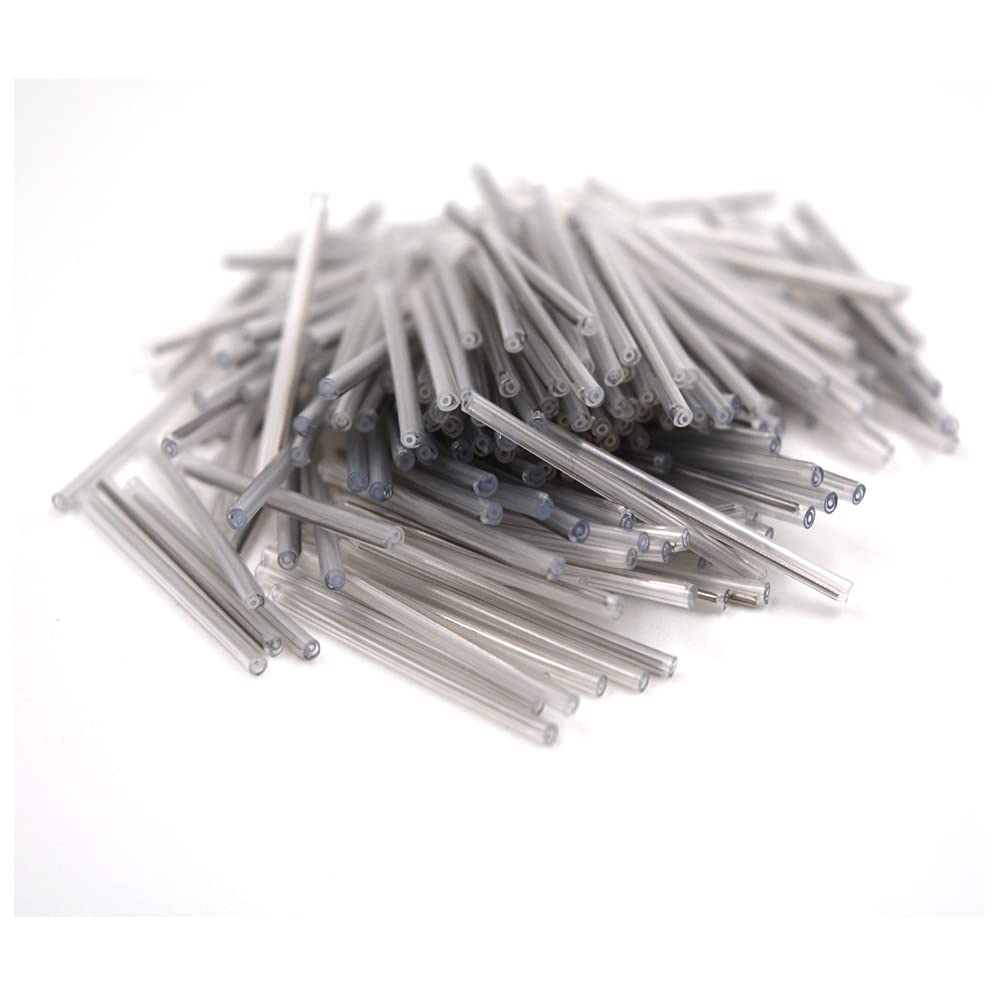

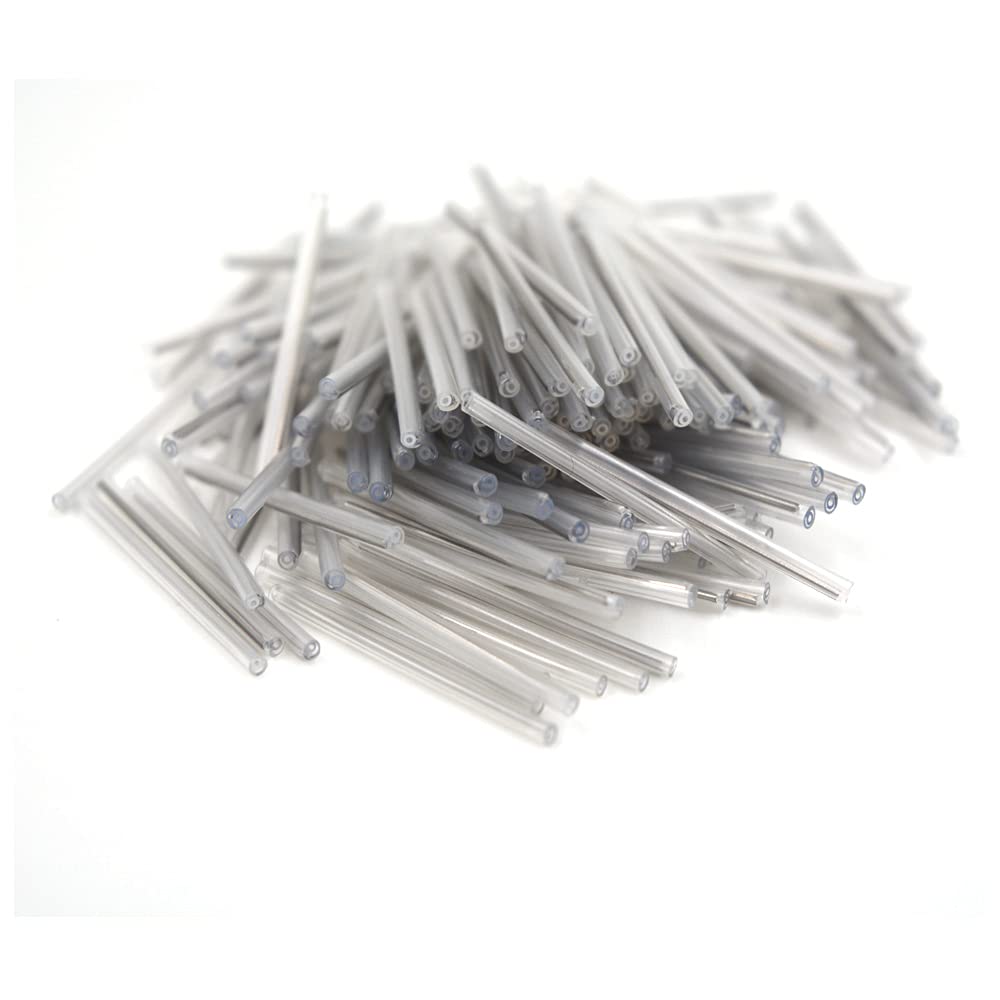

Fiber Optic Fusion Splice Protection Sleeve 500pcs (φ1.4x25mm) Y284
Fiber Optic Fusion Splice Protection Sleeve 500pcs (φ1.4x25mm) Y284
High quality and reliability with Industry Standard
Single fiber entry hole for faster installation,Application type: Single Fiber 250µm
Clear sleeve make it easy to detect splice before shrinkage,Airproof structure keeping the splice point's good resistance of humidity and temperature
Strength member is made from 'Full hard' stainless steel of 304 grade and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking. 304 grade gives better corrosion resistance, even in coastal environment. Resistant to heat shocks, no cracking dripping or flowing
UL Approved high quality materials,Easily use and avoid any damages to the optical fiber during installation
Overview:
The Micro Series are high quality, long-term reliability Fibre Optic Fusion Splice Protector Sleeves. Designed to restore the mechanical strength, environmental protection and optical performance of single optical fiber after fusion splicing.
The product tested and positively evaluated by many customers. Stiffness of connection and quickness of assembly are the basic advantages of this solution.
We offer a good product in very good price on this auction the sleeve. Don't hesitate to order one pack, We guarantee, next time you order more.
Material Specifications
1. Application Type: Single Fiber 250µm
2. Compatibility: Most splice trays, ovens and coated fibers
3. Outer Material: Cross-linked Polyolefin Heat Shrinkable Tubing +135°C MIL Spec.
4. Inner Material: Hot-melt adhesive Ethylene Vinyl Acetate (EVA) Copolymer
5. Reinforcing Pin: Stainless Steel 304 with polished and rounded edges
6. Colours: Clear for easy visual inspection
7. Splice Operating Temperature: -40°C to +70°C (Heat shrink outer rated at -55°C to +135°C)
8. Storage Temperature: -40°C to +70°C
9. Package Quantity: 100pcs/bag (OD1.4x40mm and OD1.4x35mm),200pcs/bag (OD1.4x30mm and OD1.4x25mm).
Packing Contents
500pcs Mirco Fiber splice protection sleeve
